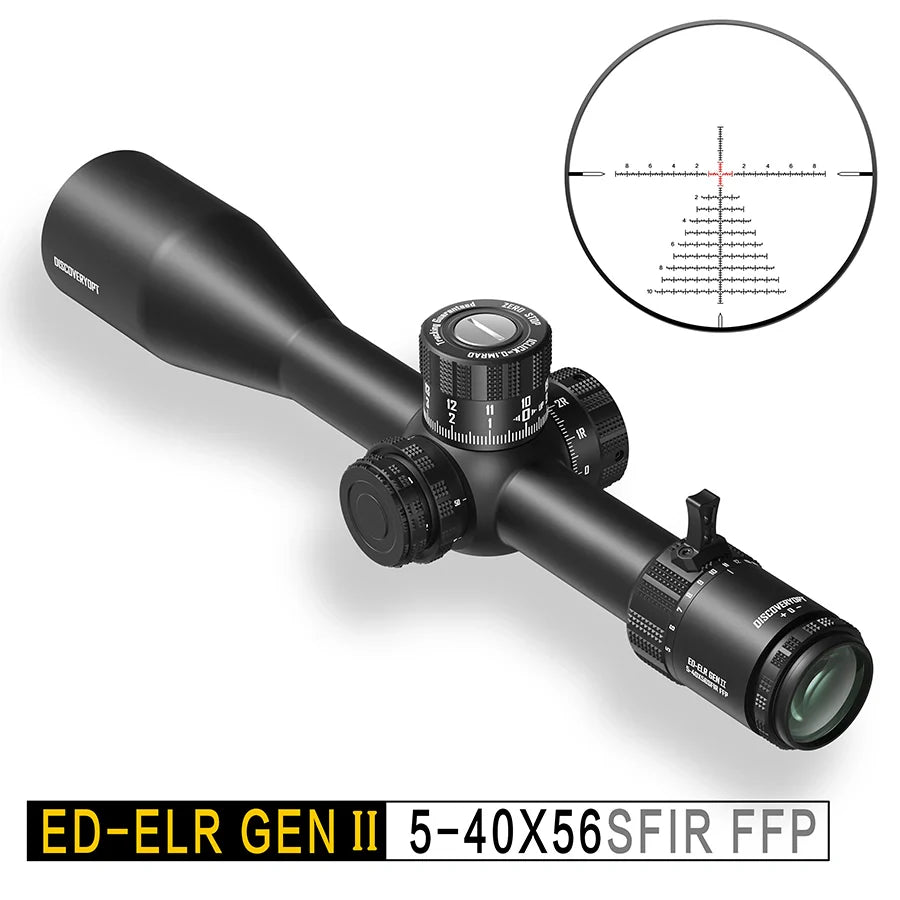

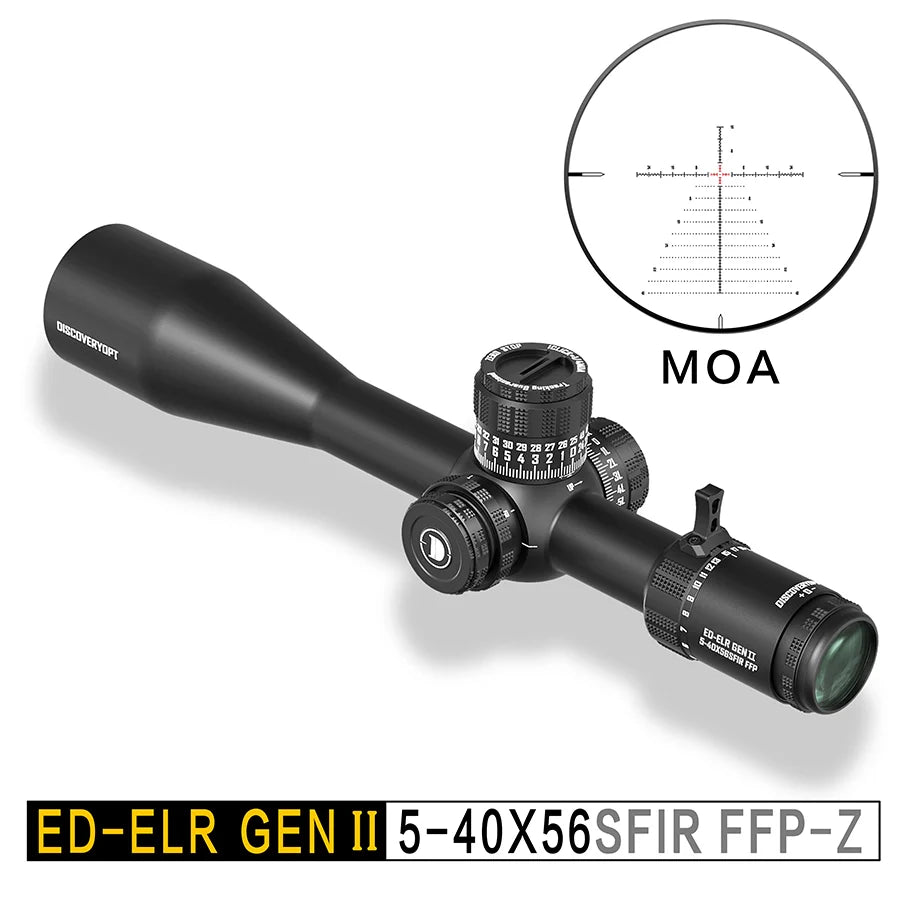

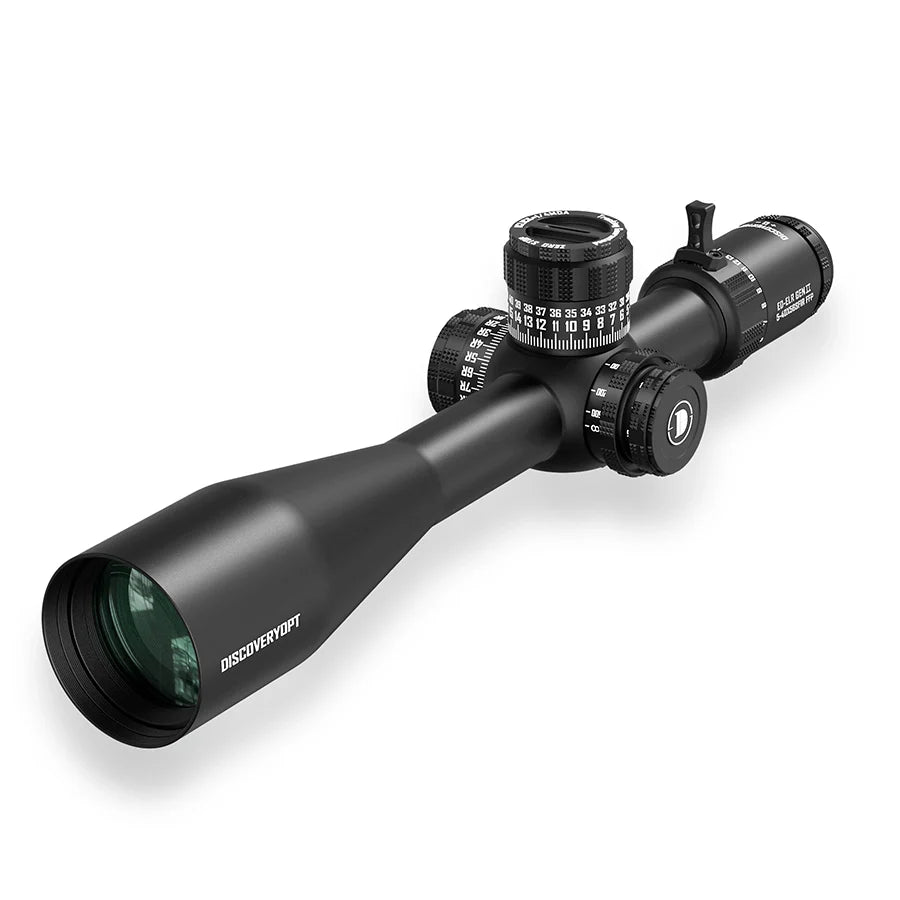

ED-ELR GEN II 5-40X56SFIR FFP-MRAD/MOA-Z Diameter:35MM Optics Scope
ED-ELR GEN II 5-40X56SFIR FFP-MRAD/MOA-Z Diameter:35MM Optics Scope
Shipping from China
Shipping from China
- Delivery in 15-20 days
Warranty Policy
Warranty Policy
- Lifetime Warranty: Applies to XED, ED, HD, and LHD series products.
- 3-Year Warranty: Applies to HT, HS, WG, MS series products, and thermal imaging devices.

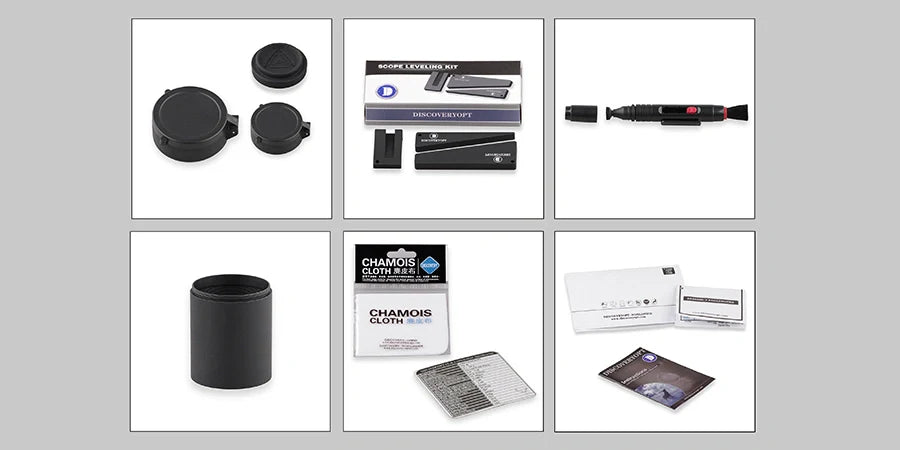

- Accessories: Are excluded from warranty coverage. However, we offer free returns within 30 days of purchase.
About tax exemption
About tax exemption
- Regarding shipments originating from China:
- Packages exceeding 2kg in weight will incur customs duties.
- Packages weighing less than 2kg are exempt from customs duties.
30-day guaranteed returns and exchanges
30-day guaranteed returns and exchanges
- Our return and exchange policy allows for free returns and exchanges within 30 days of purchase. Following this 30-day period, returns and exchanges will no longer be provided without charge.
No se pudo cargar la disponibilidad de retiro
Key Features
Optical Performance
-
ED (Extra-low Dispersion) Glass: Utilizes Japanese ED glass technology to significantly reduce chromatic aberration, enhancing image clarity and color reproduction, particularly suitable for extreme long-distance observations.
-
First Focal Plane (FFP) Reticle: Scales with magnification for consistent ranging and ballistic correction accuracy across all magnification levels.
-
Full Multi-Coating: Enhances light transmission (transmittance ≥92%), ensuring a bright field of view in low-light conditions.
Structure and Functionality
-
35mm Large Diameter Tube: Provides increased internal adjustment space and stability, enhancing shock resistance for high-recoil environments.
-

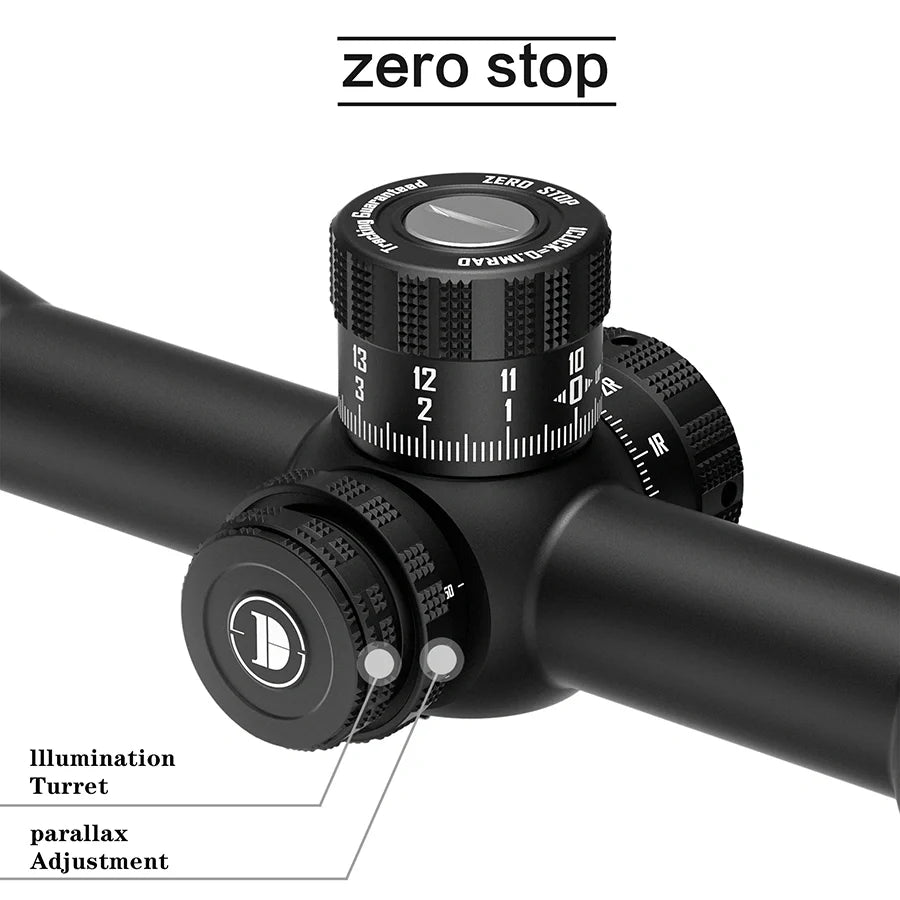

Zero Stop Function: Allows quick return to a preset zero position, ideal for rapid adjustments in competitive or tactical scenarios.
-
High-Precision Adjustment Knobs:
- MRAD Model: 0.1 MRAD per click (1/10 MRAD), 24 MRAD elevation adjustment range, 17 MRAD windage adjustment range.
-
Shockproof and Waterproof: Nitrogen-filled for waterproof and fog-proof performance, with shock resistance up to 1500G, suitable for harsh conditions.
Reticle and Illumination
-

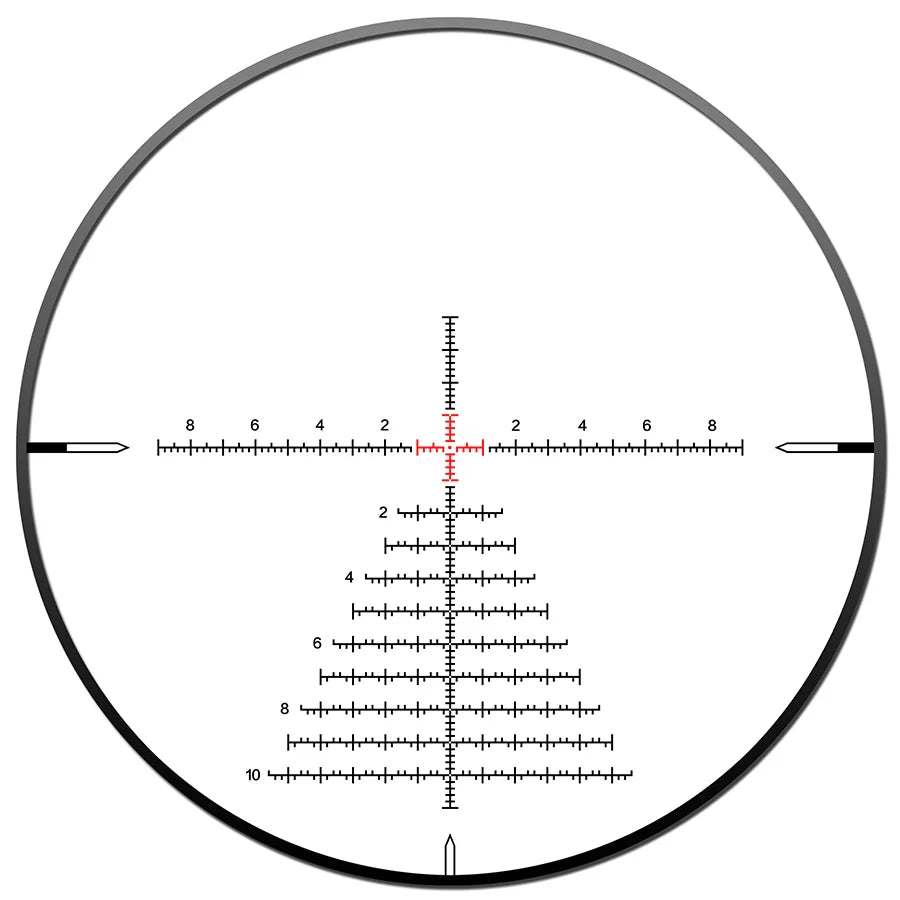

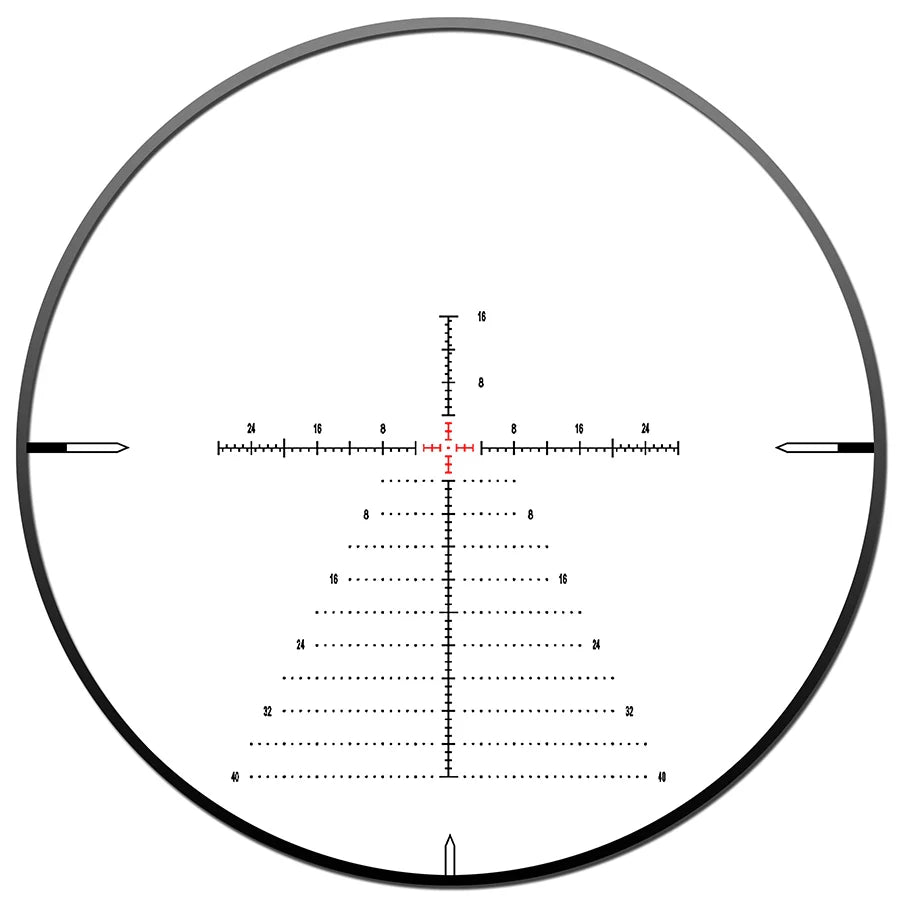

MRAD Reticle: Ideal for competitive shooters and tactical users, supporting precise ballistic correction.
-
Red Illuminated Reticle: 6 brightness levels (including ultra-low light setting), powered by a CR2032 battery, with convenient side-mounted knob operation.
Compatible Calibers and Scenarios
-
Recommended Calibers: Designed for high-precision long-distance shooting, suitable for medium to large caliber rifles like .308 Winchester, .300 Win Mag, .338 Lapua, especially for platforms requiring high magnification and ballistic correction capabilities.
-
Applications:
- Extreme Long-Range Shooting: Target competitions, long-range hunting (e.g., North American big game), and military/law enforcement sniper missions.
- Dynamic Tactical Environments: Zero stop and high shock resistance design suitable for fast target switching in tactical scenarios.
- Challenging Climate Conditions: Waterproof and fog-proof performance ensures reliability in rainy, snowy, or humid environments.

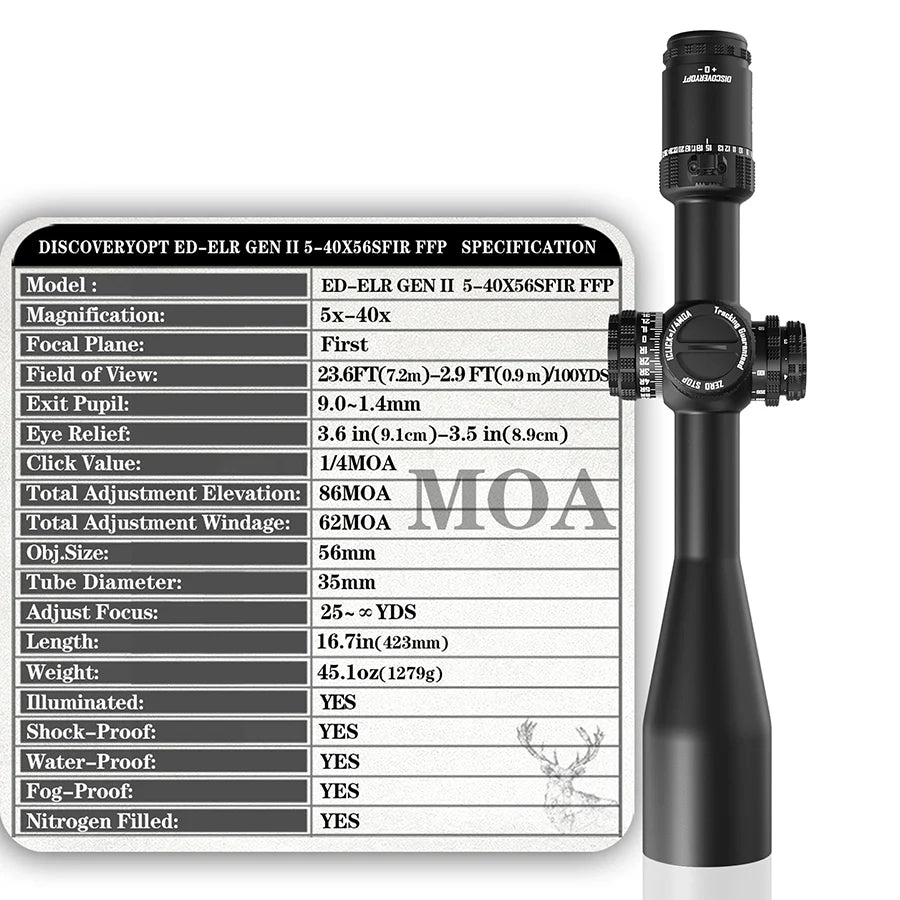

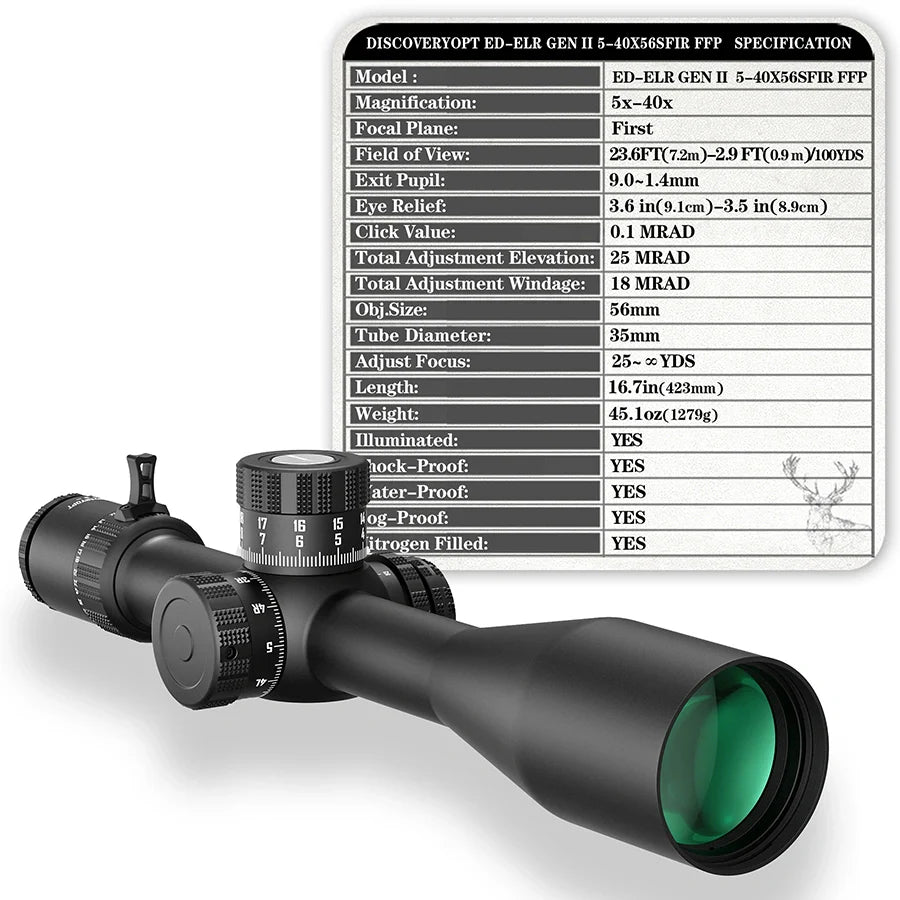

Detailed Specifications
| Category | Parameter |
|---|---|
| Magnification | 5-40x (continuous zoom) |
| Objective Diameter | 56mm |
| Tube Diameter | 35mm |
| Reticle Type | FFP (First Focal Plane), MRAD scale |
| Adjustment Accuracy | 0.1 MRAD per click (1/10 MRAD) |
| Adjustment Range | 24 MRAD elevation, 17 MRAD windage |
| Field of View | 23.4 ft @ 100 yards at 5x, 2.9 ft @ 100 yards at 40x |
| Eye Relief | 3.5-3.6 inches (8.9-9.1cm) |
| Weight | 1279g (45.1 oz) |

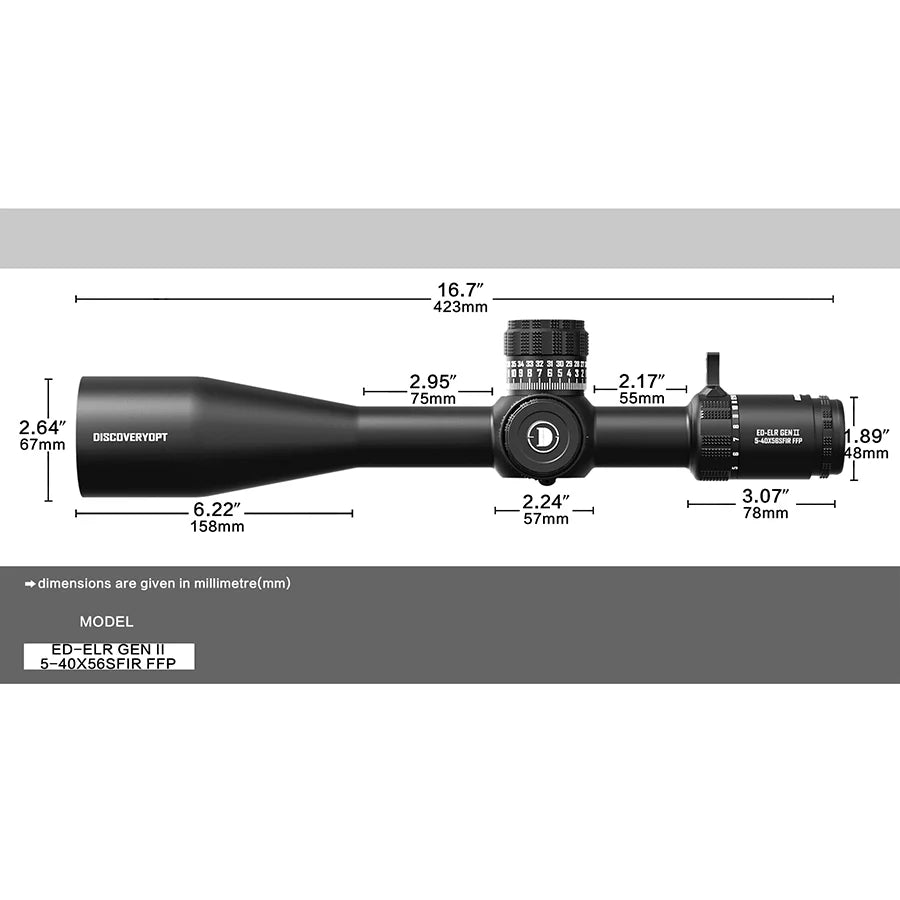

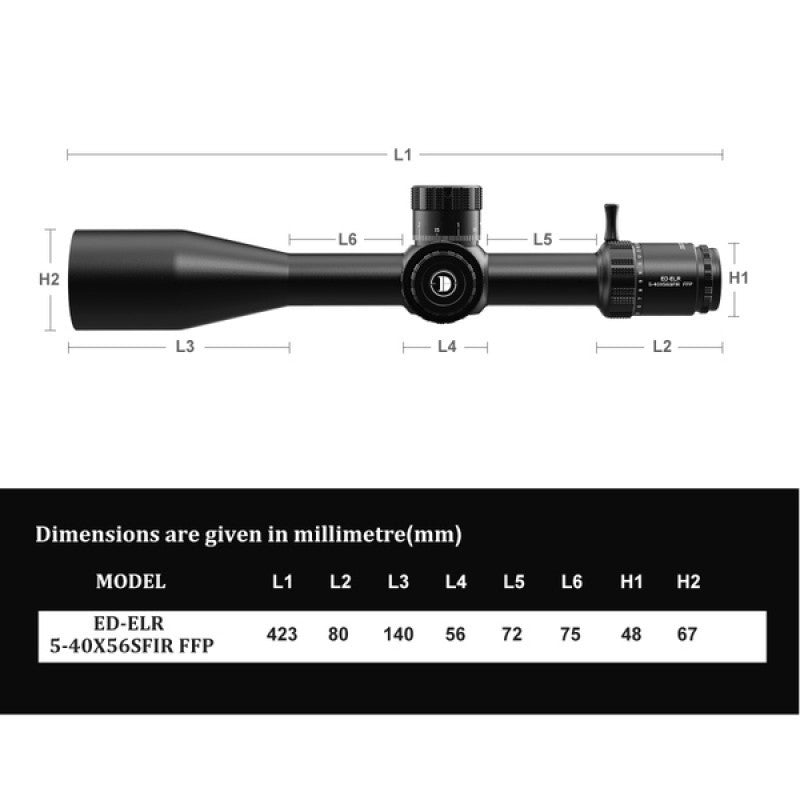

| Length | 423mm (16.7 inches) |
| Material | Aerospace-grade aluminum (T-6061), CNC machined, hard anodized finish |
Advantages Compared to Other Models
- Ultra-High Magnification Range: 5-40x zoom range caters to diverse needs from short to extremely long distances.
- Ultimate Optical Performance: ED glass technology significantly enhances image quality, ideal for extreme long-distance observations.
- High-Precision Adjustments: 0.1 MRAD per click provides extremely high adjustment accuracy, suitable for professional shooters.
Customer Reviews
This scope has great value. The packaging was excellent. It comes with really nice rings with the perfect height. For a first focal plane with this magnification it is very clear to 35x after that it is still very good. I will be getting another one.
This is my 3rd scope from this company. They are good quality and worth the money, just sad they refuse to sponsor individual shooters and only sponsor match directors. I am the one who got my regular match director interested in their scopes. Decent scopes for a decent price though, i would put it against my $700 scopes for sure.
Not good
Luneta jest w zasadzie ok, jedyny mankament to paralaksa. W zależności od przybliżenia rozjeżdża się ostrość a to powoduje, że trzeba ja korygować paralaksą. To z kolei powoduje pływanie krzyża czyli błąd paralaksy.
Nice big picture with the 56mm front objective and great magnification for aiming at the 3,4 and 5 hundred yard steel plates at the Cameo range. The negative for me is at lower powers the reticle is difficult to differentiate from the background.
